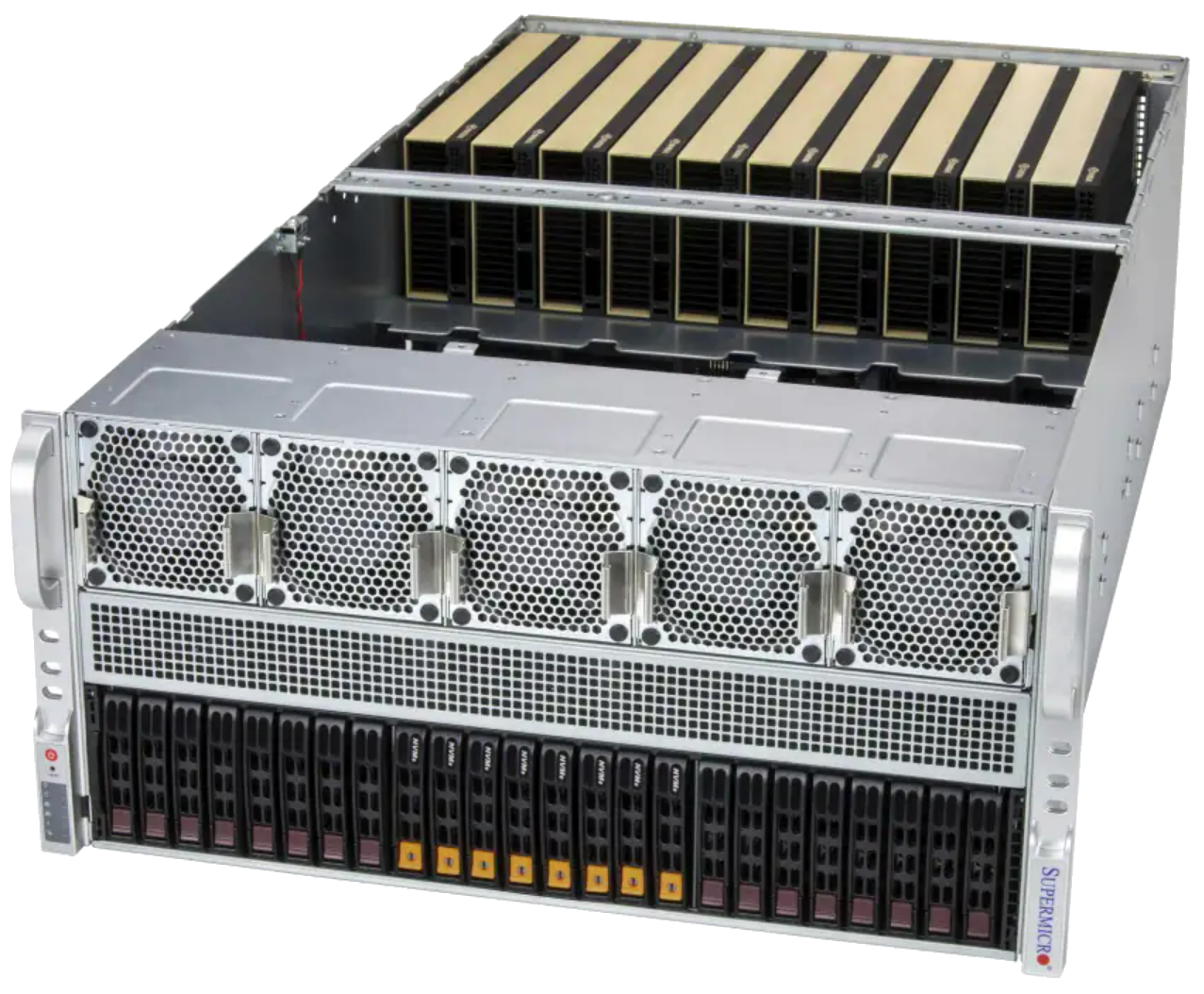

GPU A+ Server AS-5126GS-TNRT2
- Form Factor 5U Rackmount
- Supported CPUs AMD EPYC 9004
- AMD EPYC 9005
- CPU Sockets 2
-
Max Supported Memory
6 TB DDR5 ECC Supported
- Drive Bays 10 Hot swap 2.5" Drive Bays
-
Power Supply
2700 W Titanium Redundant
Key Applications
- AI / Deep Learning
- 3D Rendering Farm
- Visualization / Simulation
- High Performance Computing
- Multimedia / Digital Content Creation
Key Features

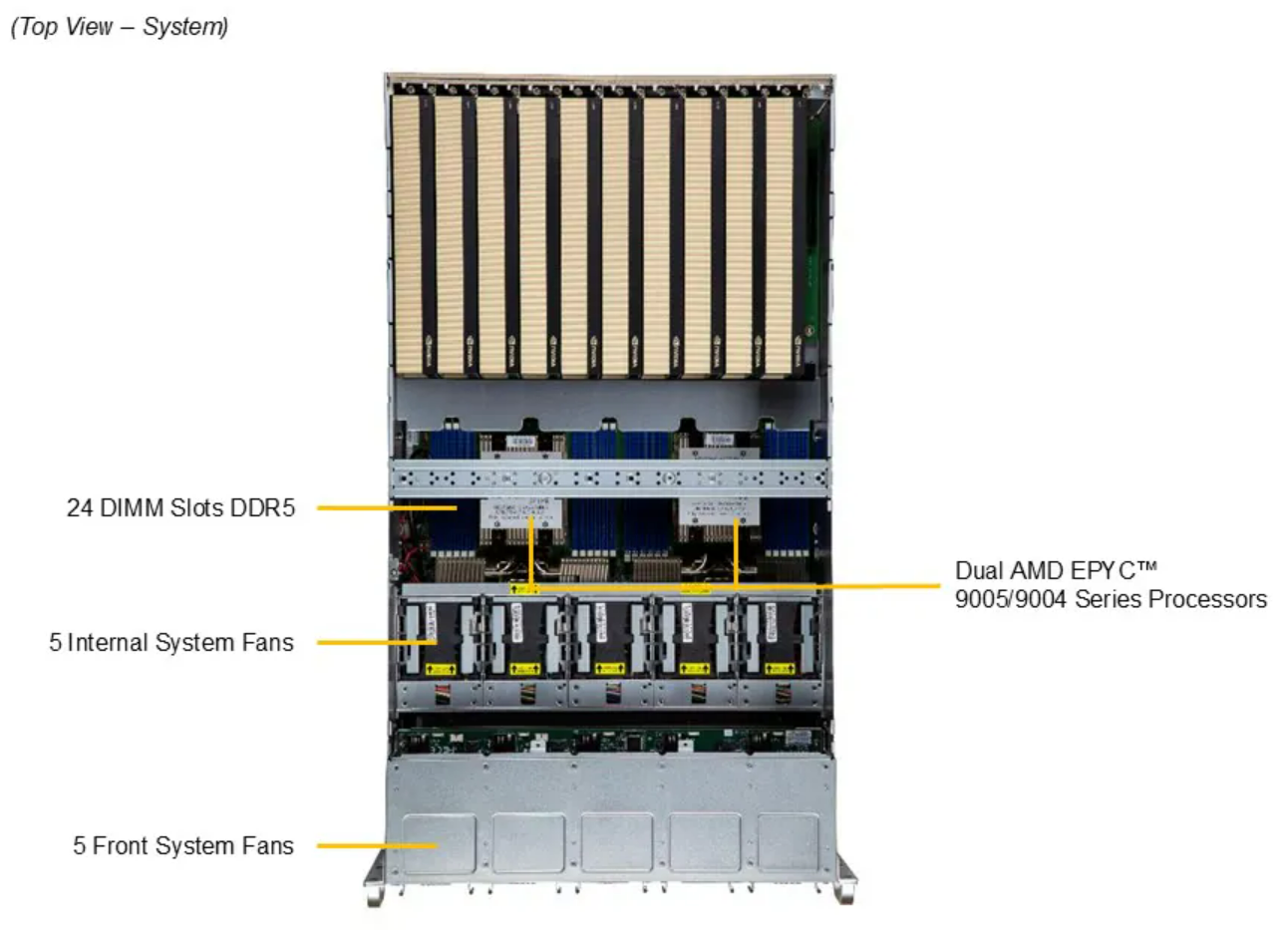

- Dual processor(s) AMD EPYC™ 9005/9004 Series Processors up to 500W with air cooling
- Supports up to 10 double-width PCIe GPU accelerator cards
- Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 in 1DPC
- (Please check System Memory Section for detail)

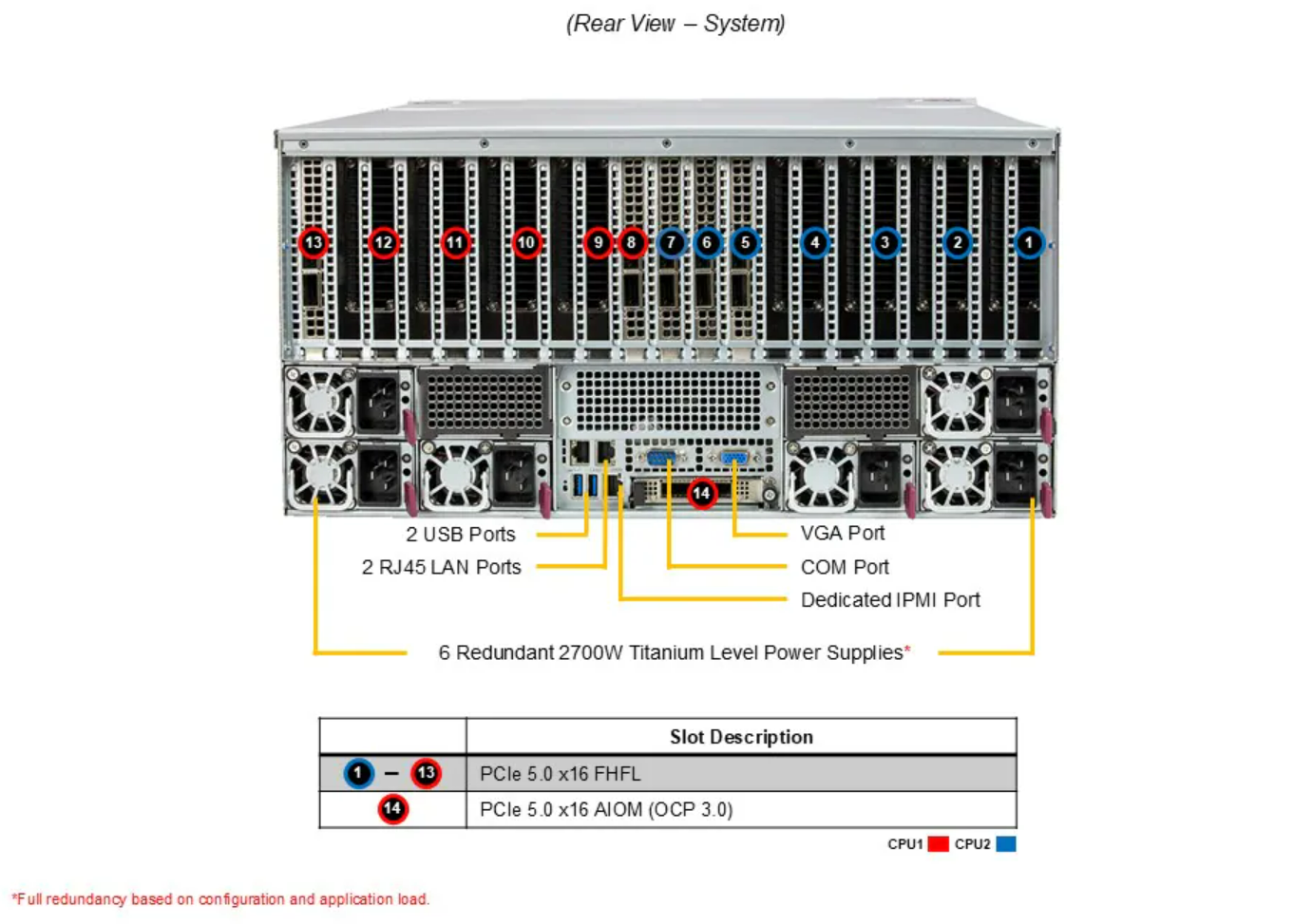

- Total of 13 PCIe 5.0 ×16 FHFL slots
- Flexible networking with AIOM support

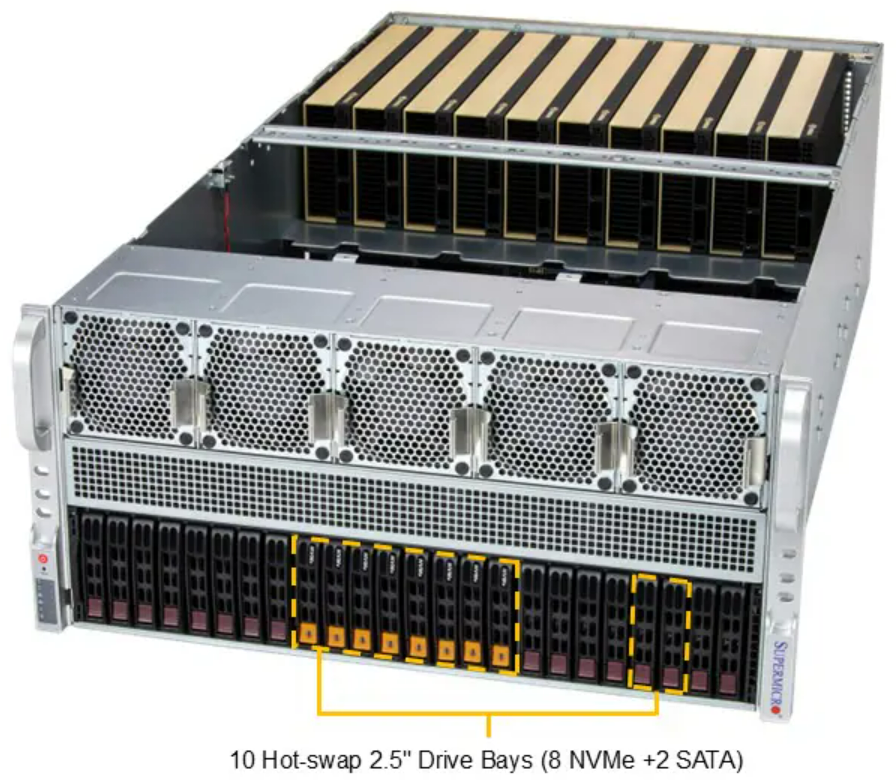

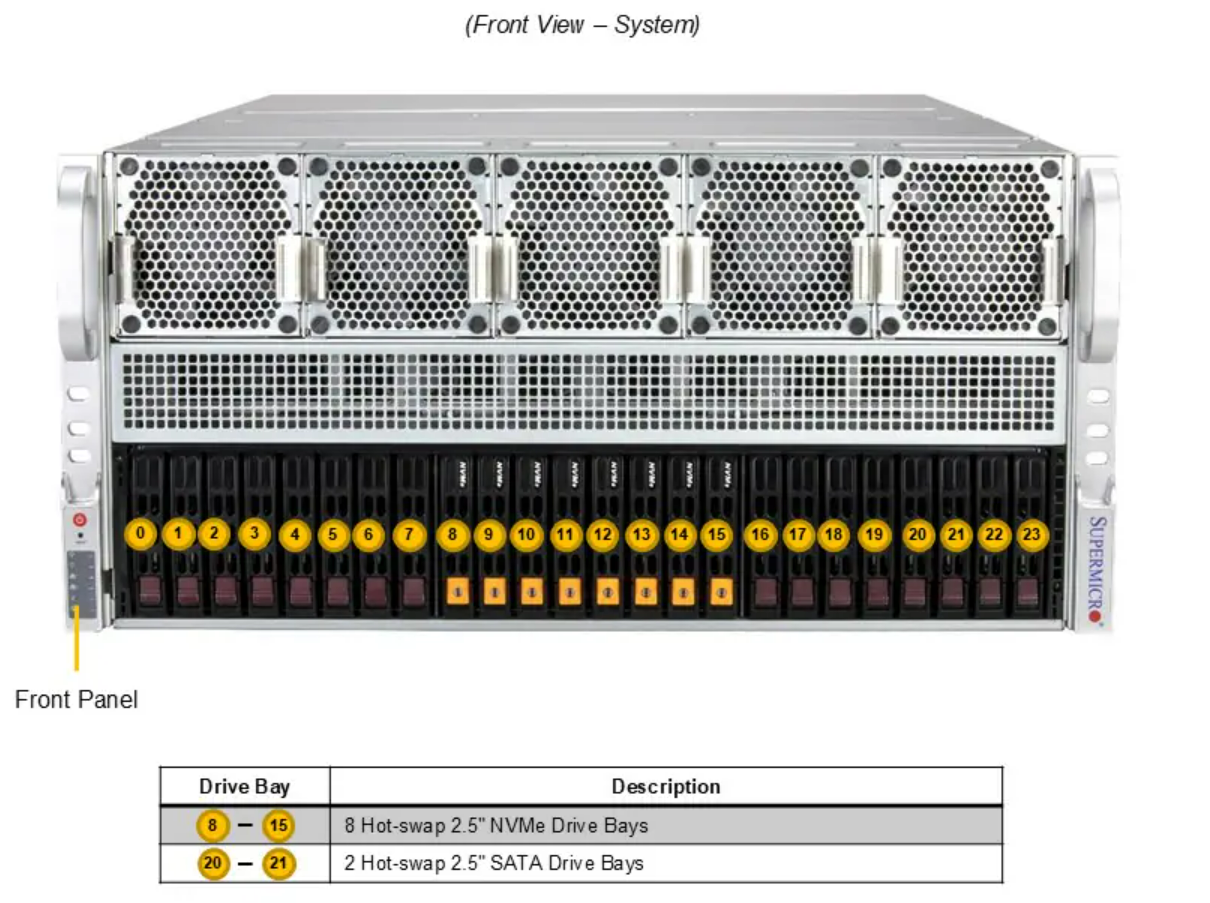

- Dual front hot-swap 2.5″ SATA + 8 front hot-swap 2.5″ NVMe drive bays
- Total of 6 × 2700W Redundant (3+3) Titanium Level power supplies
- (Power supply full redundancy based on configuration and application load)
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 192
- TDP 500 W
- M.2 1 NVMe M.2 slot
- PCI-e Default: 11 PCIe 5.0 x16 FHFL slots
- Dimensions 17.2" (437 mm) Width
- Dimensions 29" (737 mm) Depth
- Dimensions 8.75" (222.5 mm) Height
- Product Model AS-5126GS-TNRT2
- LAN 2 RJ45 10 GbE
- NVMe 8 NVMe
- USB 2 ports(rear)
- Video Output 1 VGA
- DIMM Type RDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
