Storage SuperServer SSG-542B-E1CR60
- Form Factor 4U Rackmount
- Supported CPUs Intel Xeon 6500 P-cores
- Intel Xeon 6700 E-cores
- Intel Xeon 6700 P-cores
- CPU Socket 1
-
Max Supported Memory
2 TB DDR5 ECC Supported

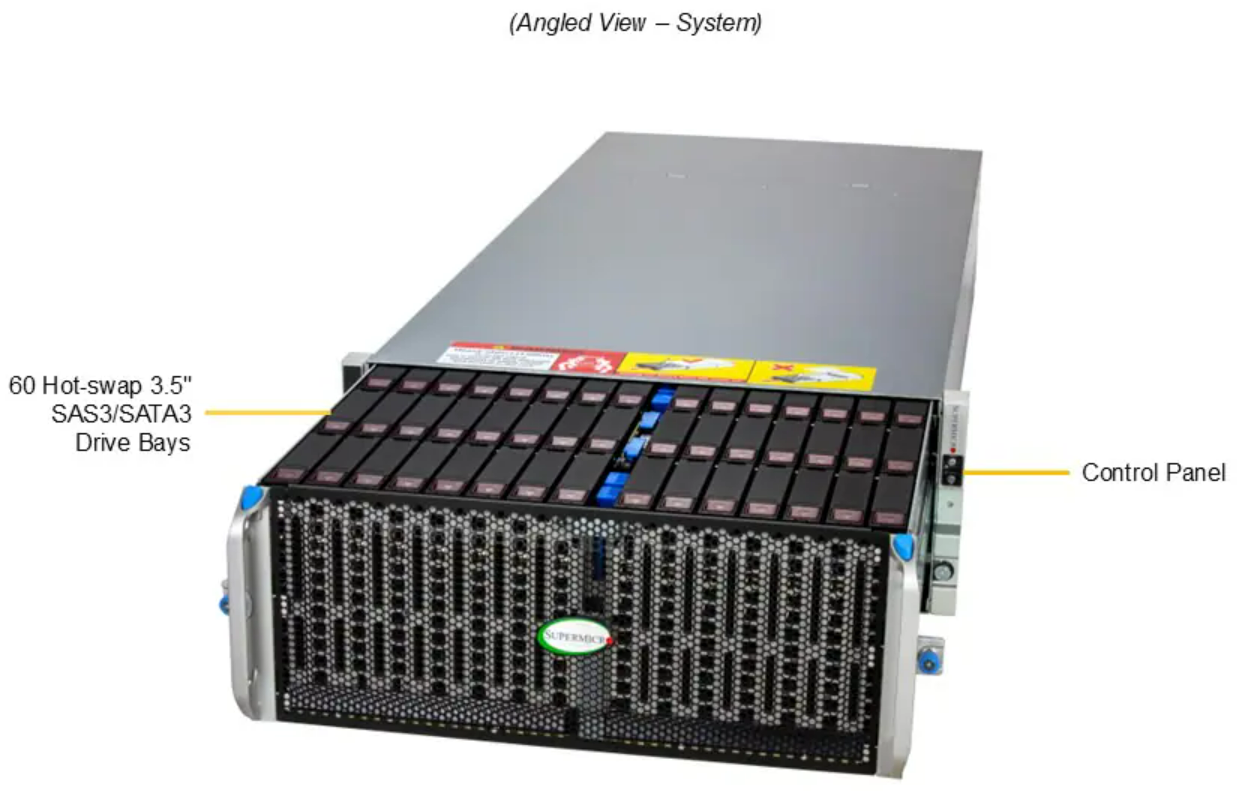

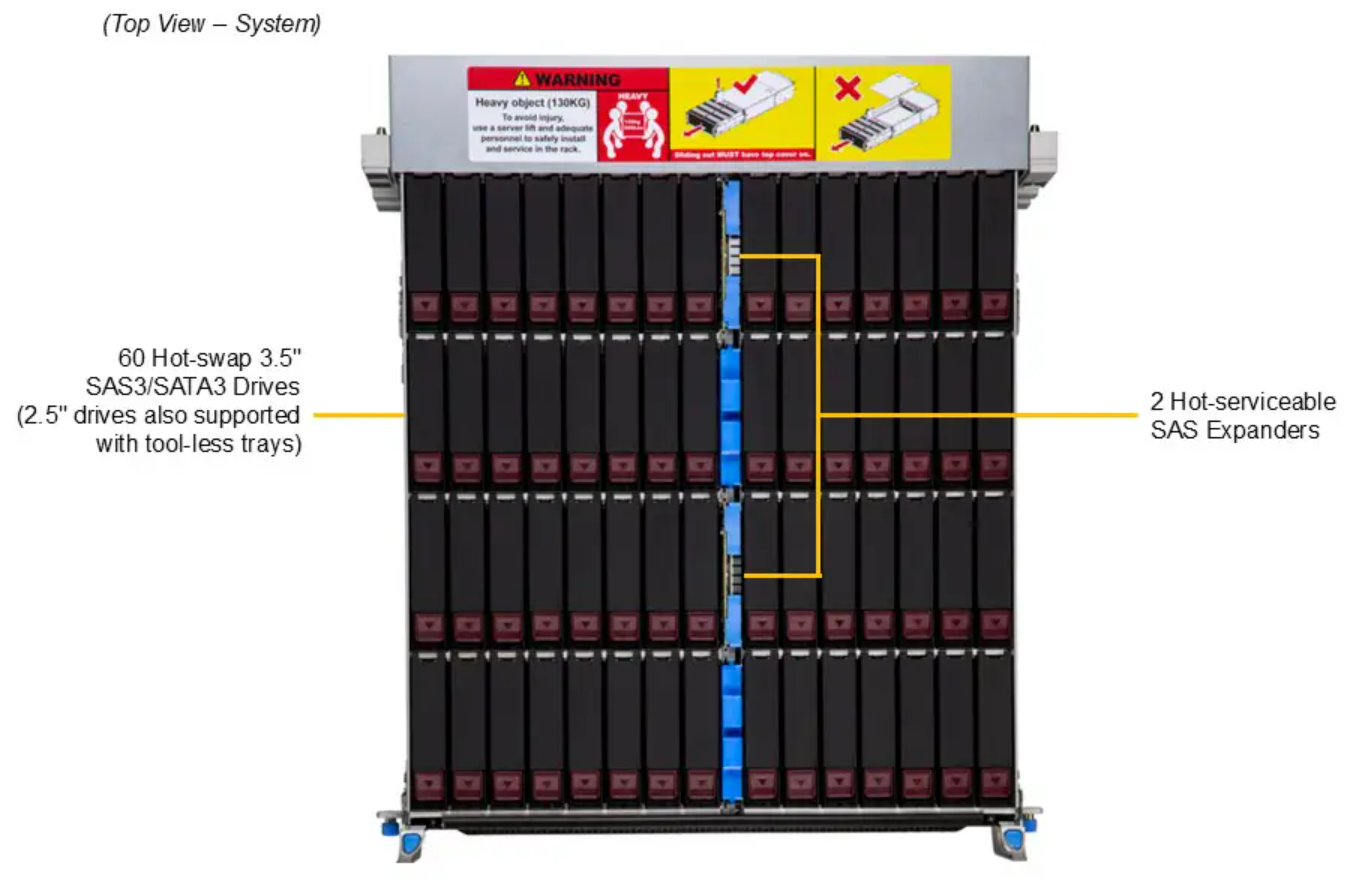

- Drive Bays 60 Hot swap 3.5" Drive Bays
-
Power Supply

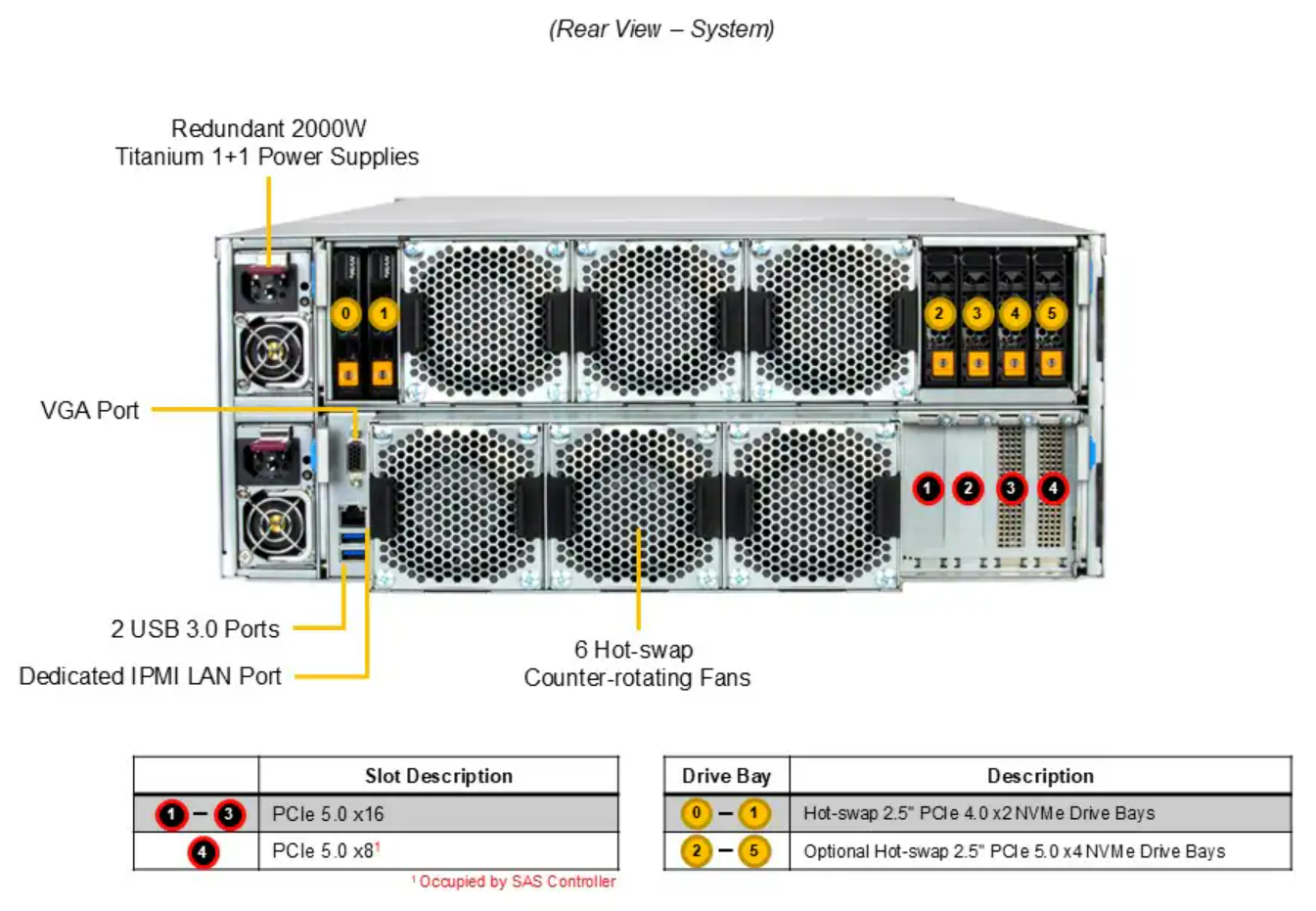

2000 W Titanium Redundant
Key Applications
- Big Data & Analytics, Data Lake
- HPC and AI / ML Workloads
- Telco & Cloud Service Providers
- Financial Services & Healthcare Image Archives
- Content Repositories
- Government Data Protection
Key Features
- Intel® Xeon® 6700-series processors with E-cores
- Single Socket LGA-4710 (Socket E2) supported
- CPU TDP supports up to 350W
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 144
- TDP 350 W
- M.2 2 NVMe M.2 slot
- PCI-e Default: 1 PCIe 5.0 x8 (in x8) HHHL slot
- Dimensions 17.6" (447 mm) Width
- Dimensions 32" (813 mm) Depth
- Dimensions 6.96" (177 mm) Height
- Product Model SSG-542B-E1CR60
- LAN 1 RJ45 1 GbE
- SATA Ports Default: 60 SAS /SATA
- USB 2 ports(rear)
- Video Output 1 VGA
- DIMM Type RDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
